Fiber Optic Slip Rings Single Channel Optical Signal
Product Description:
Precision Optical Communication: Designed for 360° continuous rotation, the HSF01G Series ensures uninterrupted transmission of optical signals, making it a critical component for systems that require precision communication while rotating.
High Durability for Long-Term Use: With a reference lifespan exceeding 50 million revolutions (≥5000W cycles), this slip ring is built for continuous-duty industrial systems where longevity and reliability are key.
Broad Wavelength Support: Compatible with the 1310nm and 1550nm single-mode wavelength ranges, this unit meets the requirements of most industrial and communication-grade optical systems.
Applications:
PTZ and Dome Surveillance Cameras: Ensures uninterrupted high-definition video and control signal transmission during continuous panning and tilting, improving monitoring reliability in security and defense systems.
Broadcast Equipment: Supports high-speed, noise-free optical video/data transmission in live filming setups, ideal for stage production, event broadcasting, and virtual studios.
Satellite and Radar Antenna Turrets: Provides clean, uninterrupted optical signal in rotating radar, satellite tracking, or telemetry platforms, with excellent EMI immunity and high precision.
Specifications:
Light path parameters
| Fiber types | SM: G.657.A1 |
| Channel number | 1 |
| Wavelength range | SM:1310/1550nm |
| Insertion loss | ≤3dB |
| Insertion loss ripple | ≤0.7dB |
| Bending radius | ＞R25 |
| Maximum speed | 0-1000RPM |
| Working temperature | -40℃~+85°C |
| Estimated life cycle | 30-50 million revolutions |
| Line length | ≥1000mm |
| Connector types | FC/SC/ST/LC
(PC or APC) |

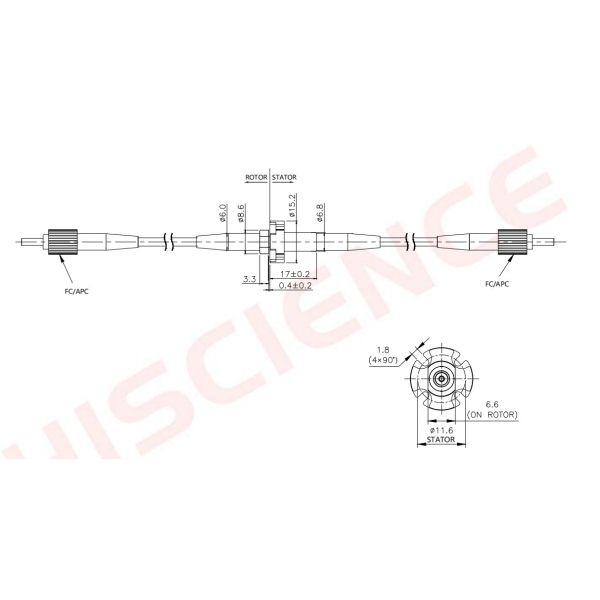

Drawing:
FAQ:
Q: Can I customize the connector type for the HSF01G series?
A: Yes. We support customization of connector type (FC, LC, SC) and end-face (APC, PC) according to your system requirements.
Q: What is the maximum rotational speed supported by this slip ring?
A: The HSF01G supports up to 1000 RPM, ensuring high-speed rotation without signal interruption.
Q: What makes this product different from your other fiber optic slip rings?
A: This model is our cost-effective standard version—offering excellent performance with a simplified structure. It’s perfect for common applications with single-channel fiber requirements. If you need multi-channel, custom housing, or integration with electrical/signals, we also offer high-end customizable solutions.
|
|
